Embedded Linux Motherboard RK3568 Pcba Motherboard MIPI Camera Embedded Development Board
Description of Embedded Linux Motherboard JLD-A09
The RK3568 motherboard features a quad-core Cortex-A55 64-bit processor with a maximum frequency of 2.0GHz, delivering robust computing and data processing capabilities. When handling complex advertising content such as high-definition videos and 3D animations, it can quickly parse and render, ensuring smooth playback of the advertising machine and providing viewers with clear, lifelike visual experiences. Compared to traditional motherboards, the RK3568 excels in multitasking. For instance, when an advertising machine runs multiple programs simultaneously--such as ad playback, information queries, and background data updates--it efficiently allocates system resources, preventing interference between programs and ensuring stable operation.
Features of Embedded Linux Motherboard JLD-A09
- Support LVDS, MIPI, EDP, HDMI interface display and i2c touch panel
- Rich Interaction: USB 2.0 USB3.0, com port, HDMI, MIPI EDP LVDS, Mini PCIE interface, etc.
- Network interfaces: Ethernet gigabit, Wireless WIFI 2.4G & 5G for option, BT
- Strong anti-electromagnetic interference and Electromagnetic compatibility
- Compatible for major mainstream manufacturers' POS application software, stable performance

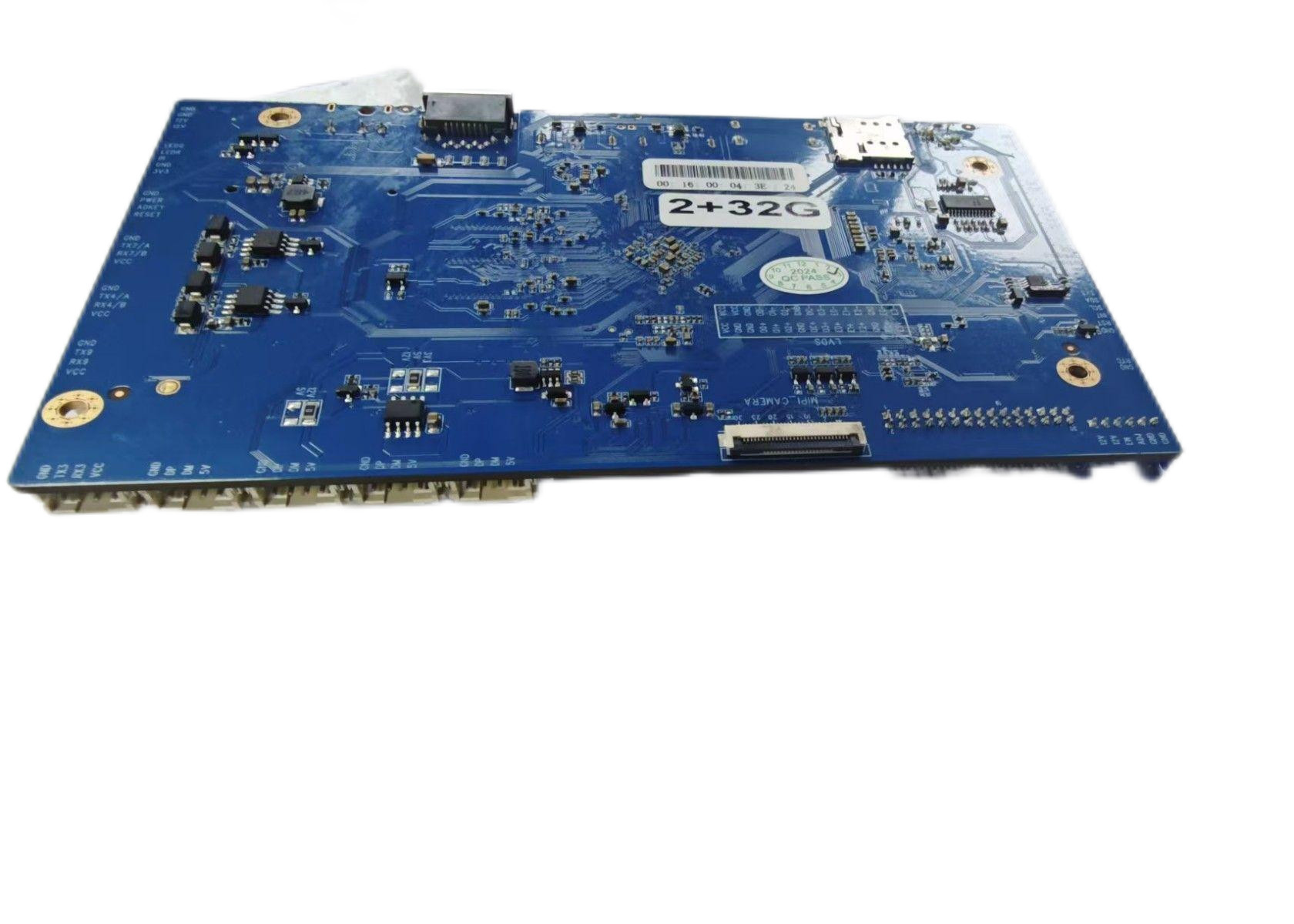

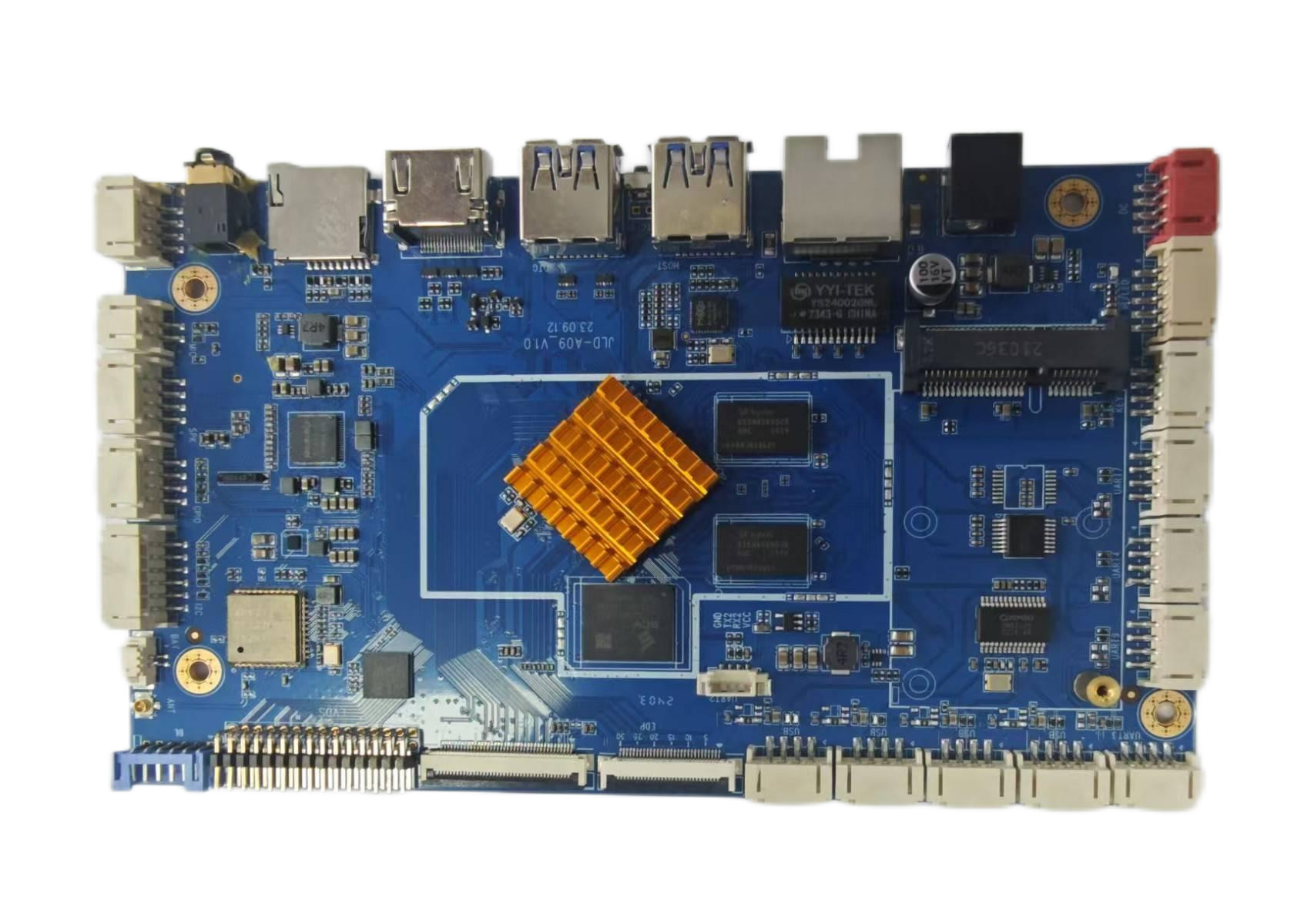

Interface Photos of Embedded Linux Motherboard JLD-A09
Main Parameters of Embedded Linux Motherboard JLD-A09
| Processor |
RK3568 Quad-core 64-bit Cortex-A55 processor, maximum frequency 2.0GHz |
| GPU |
ARM G52 2EE support OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1 |
| NPU |
1TOPS |
| Memory |
2G/4G/8G DDR4 optional |
| EMMC |
16G-128G optional |
| Display |
Support LVDS,EDP,MIPI,HDMI |
| Audio Output |
Stereo, support Dolby sound effect |
| Audio port |
3.5mm headphone jack, 2P2.0 microphone interface, 4P2.0 speaker interface |
| Ethernet |
10/100/1000M |
| Wi-Fi |
2.4G/5G WiFi BT |
| OS |
Android 11/ Ubuntu 20.04/Debian 10 |
| TP |
I2C /USB interface TP |
| Memory card type |
TF-CARD |
| USB Interface |
Built-in USB 2.0 sockets (4 pcs), external USB 2.0 (2 pcs) 3.0 (1 pce) OTG (1 pce) |
| Serial port |
7 in total, optional types, TTL (1-7 pcs), RS232 (0-6 pcs), RS485(0-2 pcs) |
| RTC |
Support power-off clock memory, automatic power on and off |
| Camera |
USB camera |
| PCB Size |
146mm*102mm*1.6mm |
| Power supply |
DC12V-24V input |
| Temperature |
-20°- 80℃ |
Application of Embedded Linux Motherboard JLD-A09
- Advertising Machine
- Self-service terminals
FAQ
Q1. Can I have a sample order for PCBA motherboard?
A: Yes, we welcome sample order to test and check quality with your equipment. Customized development PCBA are available well.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for trial order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for PCBA motherboard?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on PCBA motherboard product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.
Any inquiry, please leave message to us!
Tag: Android embedded board, Linus board, Android development board
